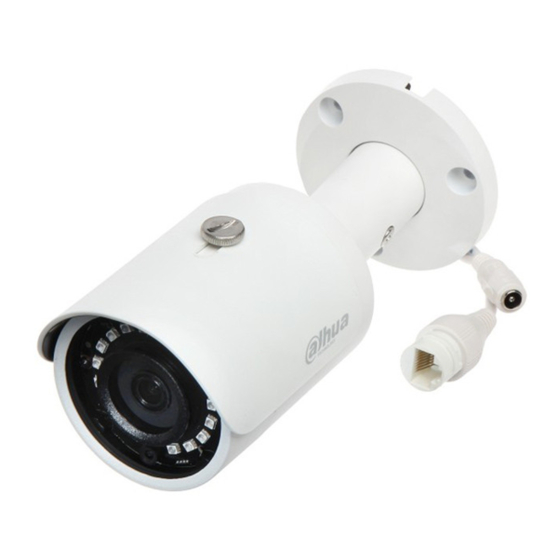

Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide

Dahua HD Mini IR Waterproof Bullet Network Camera

Quick Start Guide

Version 1.0.0

Zhejiang Dahua Vision Technology Co., LTD

• Page 1
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Version 1.0.0 Zhejiang Dahua Vision Technology Co., LTD…
• Page 2
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Welcome Thank you for purchasing our Network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
• Page 3
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Please do not dismantle the device; there is no component which can be fixed by users themselves in the machine. It may cause water leakage or bad image for the device due to unprofessional dismantling.
• Page 4
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide FCC Information 1. FCC conditions： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference;…
• Page 5
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Table of Contents Framework ……………………… 1 Device External Cable ………………..1 Framework and Dimension ………………1 Device Installation ……………………2 Install Device ……………………. 2 Network Configuration ………………….. 4 Modify IP Address ………………….4…
• Page 6
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 1 Framework 1.1 Device External Cable You can refer to the following figure for cable information. See Figure 1-1. Figure 1-1 Cable Please refer to the following sheet for detailed information.
• Page 7
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 2 Device Installation Note: The device installation steps may be different due to the different appearance and structure,  please refer to 2.1 according to the actual product. Please make sure the installation surface can min support the 3X weight of the camera and …
• Page 8
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 2-2 Step 5 Use cross screwdriver (in accessories bag) to loosen adjusting screw. Step 6 Adjust the device in all possible directions, and set its monitoring direction according to the requirements.
• Page 9
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 3 Network Configuration The IP address of all the cameras is the same when leaving factory (default IP192.168.1.108), in order to make the camera get access to the network smoothly, please plan the useable IP segment reasonably according to the actual network environment.
• Page 10
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 3-1 Step 3 Modify the camera IP address on the “Net” interface, click “Save” to finish modification. See Figure 3-2 for more details. Figure 3-2…
• Page 11
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 3.2 Login WEB Interface Note: Different devices may have different WEB interfaces, the figures below are just for reference, please refer to the document <<WEB Operation Manual>> in the disk and the actual interface for…
• Page 12
  Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 3-4 Note:  This quick start guide is for reference only. Slight difference may be found in user interface.  All the designs and software here are subject to change without prior written notice.

Мы предлагаем следующие способы доставки товара:

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Если у вас возникнут вопросы по оформлению заказа, вы можете обратиться к нам, позвонив по телефону +7 495 414-10-85 или связавшись по электронной почте sale@ru-dahua.com. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Dahua.


Запрос цены или КП

Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Dahua оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 414-10-85 или электронной почте sale@ru-dahua.com. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Dahua.

Специалист по решениям Dahua:

MANUALSCAT | EN

Question & answers

Have a question about the Dahua Technology Lite HAC-HFW1220SP-0360B but cannot find the answer in the user manual? Perhaps the users of ManualsCat.com can help you answer your question. By filling in the form below, your question will appear below the manual of the Dahua Technology Lite HAC-HFW1220SP-0360B. Please make sure that you describe your difficulty with the Dahua Technology Lite HAC-HFW1220SP-0360B as precisely as you can. The more precies your question is, the higher the chances of quickly receiving an answer from another user. You will automatically be sent an e-mail to inform you when someone has reacted to your question.

Page: 1

HDCVI Camera User’s Manual
Version 1.0.1

Page: 2

2
Table of Contents
1 General Introduction ……………………………………………………………………………………………………1
1.1 Overview…………………………………………………………………………………………………………1
1.2 Features………………………………………………………………………………………………………….1
2 Device Framework ………………………………………………………………………………………………………2
3 Installation …………………………………………………………………………………………………………………..9
4 Menu………………………………………………………………………………………………………………………….17
4.1 HCVR Settings………………………………………………………………………………………………17
4.2 Menu Operation…………………………………………………………………………………………….17

Page: 3

i
Welcome
Thank you for purchasing our HDCVI camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
Important Safeguards and Warnings
1．Electrical safety
 All installation and operation here should conform to your local electrical safety codes.
 The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the
Limited power source is rated DC 12V or AC24V in the IEC60950-1. (Power supply requirement is
subject to the device label).
 Please install easy-to-use device for power off before installing wiring, which is for emergent power
off when necessary.
 Please check if the power supply meets the requirements of working voltage of the camera before
operating the device (The material and length of the power supply cable will influence terminal
voltage value).
 Please prevent the line cord from being trampled or pressed, especially the plug, power socket and
the junction from the device.
2．Environment
 Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus.
 Please transport, use and store the device within the range of allowed humidity and temperature.
 Please do not allow water and other liquid falling into the camera in case that the internal
components are damaged.
 Please keep the sound ventilation in case of heat accumulation.
 Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
 Please pack the device with standard factory packaging or material with same quality when
transporting the device.
 It is recommended to use the device together with lightning protection device to enhance lightning
protection effect.
 It is recommended to GND the device to enhance device reliability.
 It is advised to use qualified video transmission cable to improve video quality. It is recommended
to use 75-3 coaxial cable or higher standard.
Warning
 Please use the standard accessories provided by manufacturer and make sure the device is
installed and fixed by professional engineers.
 Please prevent the device surface from the radiation of laser beam when using laser beam device.

Page: 4

ii
 Please do not provide two or more power supply modes for the device, otherwise it may cause
damage to the device.
Statement
 Please refer to the actual product for more details; the manual is just for reference.
 The manual will be regularly upgraded according to the product update; the upgraded content will
be added in the manual without prior announcement.
 Please contact the customer service for the latest procedure and supplementary documentation.
 The company is not liable for any loss caused by the operation which is not followed by the manual.
 Please refer to the company’s final explanation if there is any doubt or dispute.

Page: 5

1
1 General Introduction
1.1 Overview
This series HDCVI camera conforms to the HDCVI standard. It supports video signal high-
speed long distance transmission without any delay. It can be controlled by the HCVR
conforming to the HDCVI.
1.2 Features
 High-performance CMOS image sensor, megapixel definition.
 Support HD video, control signal coaxial transmission.
 For 720P series, support 75-3 coaxial cable transmission without any loss. The distance is
over 800m. For 1080P series, support 75-3 coaxial cable transmission without any loss.
The distance is over 500m.
 Support HDCVI HD/SD output.
 Support ICR switch to realize surveillance both in the daytime and at night.
 Support OSD menu adjustment parameters.
 Support smart IR function.
 Support DWDR function.
 Support High speed, long distance real-time transmission.
 Support DC12V power supplying.
 Support IP67 compliance.
 Support ICR switch to realize surveillance both in the daytime and at night.
 Support photosensor IR control function.
 It can be applied to the various scenes such as store, supermarket, coffee shop, school,
hotel, office, restaurant, garden, parking lot and etc.

Page: 6

2
2 Device Framework
Please refer to Figure 2-1 for dimension information of model A. The unit is mm.
Figure 2-1
Please refer to Figure 2-2 and Figure 2-3 for structure components of model A.
Figure 2-2

Page: 7

3
Figure 2-3
Please refer to Figure 2-4 for dimension information of model B. The unit is mm.
Figure 2-4
Please refer to Figure 2-5 for structure components of model B.

Page: 8

4
Figure 2-5
Please refer to Figure 2-6 for dimension information of model C. The unit is mm.
Figure 2-6
Please refer to Figure 2-7 for structure components of model C.

Page: 9

5
Figure 2-7
Please refer to Figure 2-8 and Figure 2-9 for dimension information of model D. The unit is mm.
Figure 2-8
Figure 2-9

Page: 10

6
Please refer to Figure 2-10 for structure components of model D.
Figure 2-10
Please refer to Figure 2-11 and Figure 2-12 for dimension information of model E. The unit is
mm.
Figure 2-11
Figure 2-12

Page: 11

7
Please refer to Figure 2-13 for structure components of model E.
Figure 2-13
Please refer to Figure 2-14 and Figure 2-15 for dimension information of model F. The unit is
mm.
Figure 2-14
Figure 2-15
Please refer to Figure 2-16 for structure components of model F.

Page: 12

8
Figure 2-16
Please refer to Figure 2-17 and Figure 2-18 for dimension information of model G. The unit is
mm.
Figure 2-17
Figure 2-18

Page: 13

9
3 Installation
Important
 Before the installation, please make sure the installation surface can sustain at
least 3X weight of the bracket and the camera.
Model A
Figure 3-1
Step1
Take out the camera cable through cable exit of the bracket chassis and install camera bracket.
If it is cement wall, you need to install expansion bolt first (the installation hole of expansion
bolt need to be in accordance with the bracket), then use self-tapping bolt to install bracket,
which is shown in Figure 3-1.
If it is wooden wall, you can skip the first step and use self-tapping bolt to install bracket
directly.
Step 2
Unscrew the M3×20 and M3×5 screws on the bracket in the direction shown in Figure 3-2,
adjust the camera to an exact location which needs to be monitored by rotating the bracket
and camera body, then secure the bolts.

Page: 14

10
Figure 3-2
Step 3
Connect the video output port of the device cable to the HCVR, and connect the power port of
the device cable to the power.
Step 4
After the image is shown on the HCVR, open the lower cover of the camera and adjust lens
focal length by focus/zoom lever to make the image clear and secure the lever. Retighten the
camera lower cover and complete the installation.
Model B/Model C
Figure 3-3

Page: 15

11
Figure 3-4
Step 1
Install the camera bracket according to your installation mode.
Before you install the bracket, please pull the cable through the cable exit of the
installation surface or pull the cable through the cable exit of the bracket.
 Please install the expansion bolt if you want to install in the cement wall (Please make
sure the installation holes of the expansion bolts are the same with the bracket.) Then you
can install the bracket.
 If you want to install in the wood surface, please skip the first step and then use the self-
tapping screws to install the bracket directly.
Step 2
Put the two self-tapping screws to the two expansion blots at the top left and the top right.
Secure the bracket on the self-tapping screws.
Important
The screw depth shall reserve 8mm-10mm to secure the bracket.
Step 3
Fix other two self-tapping screws and the secure. Now the camera is fixed on the installation
surface.
Step 4
Use the L wrench (provided) to loosen the adjusting screw to make the camera can monitor
the corresponding surveillance zone. Use the L wrench to adjust the adjusting screw to fix the
camera firmly.
Step 5
Connect the video output port of the device cable to the rear-end encode device such as DVR
or NVS. Then connect the power port of the device cable to the corresponding power
supplying source.

Page: 16

12
Now you have completed the device installation and cable connection.
You can use the terminal encode device to view the monitor video.
Model D
Step 1
Dig three holes in the installation surface of the wall or the ceiling. Insert three expansion bolts
to the three holes and then lock firmly. See Figure 3-5.
Figure 3-5
Step 2
First prepare the cable according to the cable. Line up the three screw holes at the bottom of
the bracket to the three installation holes in the wall or the ceiling, and then insert three screws
to the three holes of the chassis of the bracket and fix them firmly. Now secure the bracket on
the installation surface of the wall or the ceiling.
Step 3
Adjust the camera to the proper monitor area via the three directions indicated in Figure 3-6
after you fixed the camera.

Page: 17

13
Figure 3-6
Model E
Figure 3-7
Step 1
Install the camera bracket.
Please install the expansion bolt if you want to install in the cement wall (Please make sure the
installation holes of the expansion bolts are the same with the bracket.) Then you can install
the bracket. See Figure 3-7.
If you want to install in the wood surface, please skip the first step and then use the self-
tapping screws to install the bracket directly.
Step 2
Install the camera. Use the screws to install the camera to the bracket via the installation
pedestal of the bottom of the camera.
Step 3

Page: 18

14
Adjust the camera to the proper monitor area and then secure the button of the bracket to
fasten the camera. See Figure 3-8.
Figure 3-8
Model F
Figure 3-9
Step 1
 Please install the expansion bolt if you want to install in the cement wall (Please make
sure the installation holes of the expansion bolts are the same with the bracket.) Then you
can install the bracket. See Figure 3-9.
 If you want to install in the wood surface, please skip the first step and then use the self-
tapping screws to install the bracket directly.
Step 2
Unscrew the locking screws on the bracket in the direction shown in Figure 3-10, adjust the
camera to an exact location which needs to be monitored by rotating the bracket and camera
body, and then secure the bolts.

Page: 19

15
Figure 3-10
Step 3
Connect the video output port of the device cable to the terminal encode devices, and connect
the power port of the device cable to the power.
Model G
Figure 3-11
Step 1
Install the camera bracket.
Please install the expansion bolt if you want to install in the cement wall (Please make sure the
installation holes of the expansion bolts are the same with the bracket.) Then you can install
the bracket. See Figure 3-11.

Page: 20

16
If you want to install in the wood surface, please skip the first step and then use the self-
tapping screws to install the bracket directly.
Step 2
Install the camera. Use the screws to install the camera to the bracket via the installation
pedestal of the bottom of the camera.
Step 3
Adjust the camera to the proper monitor area and then secure the button of the bracket to
fasten the camera. See Figure 3-12.
Figure 3-12

Page: 21

17
4 Menu
4.1 HCVR Settings
This HDCVI camera series can adjust OSD menu via coaxial control. After connected the
camera to the HDCVI series HCVR, from Main Menu->Setting->System->PTZ, you need to
select the channel number for access and set control mode as HDCVI and the protocol as HD-
CVI. Click “Save” button to save current setup. See Figure 4-1.
Figure 4-1
4.2 Menu Operation
Click the right mouse button and select “PTZ Control”, then you will see the “PTZ Setup” menu,
which is as shown in Figure 4-2 and Figure 4-3.
Figure 4-2

Page: 22

18
Figure 4-3
See Sheet 4-1 for the details of button functions.
Button Function
Open menu
、 Select menu item
、 Select menu value
Sheet 4-1
If there is “ ”, click the “Confirm” button in “Menu Operation” interface to go to the 2nd menu.
Click “Return” button to go back to the previous menu interface.
Please use an UTC controller or enter the OSD menu for to switchover between HD & SD
video output.
Note
 This manual is for reference only. Slight difference may be found in the user
interface.
 All the designs and software here are subject to change without prior written
notice.
 All trademarks and registered trademarks mentioned are the properties of their
respective owners.
 If there is any uncertainty or controversy, please refer to the final explanation of
us.
 Please visit our website or contact your local service engineer for more
information.
