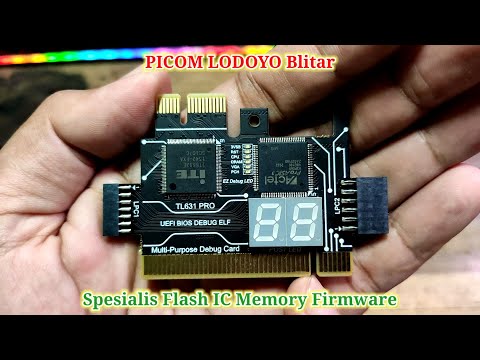

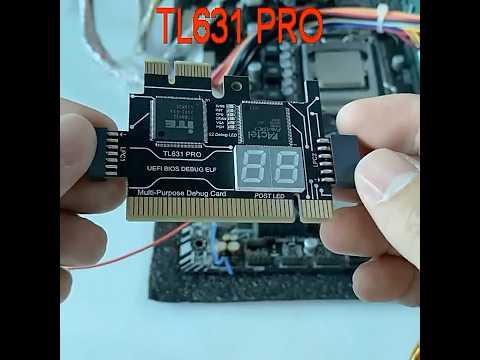

01. LPC1 shared high-speed channel = connect the motherboard 2.0 small pin LPC
      interface. 2.0 module
      (module expansion LPC3 interface can be connected to the notebook MINI PCIE
      conversion card. A-DEBUG conversion card. ASUS notebook DEBUG-CON, EC-DEBUG).
02. PCI high-speed channel = supports all PCI slots.
03. LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC
      interface. ASUS COM-DEBUG. ASRock UART1, MSI JDP, Supermicro SPI.
04. PCIE X1 high-speed channel = support Gigabyte without PCI motherboard
       (other brands do not support)
05. 3VSB power indicator light. Check whether the power supply is normal.
06. RST reset indicator, to check whether the motherboard reset is normal
      (only when PCI. PCIE is inserted).
07. CPU indicator, to detect whether the CPU module is normal.
08. DRAM memory indicator, to detect whether the memory module is normal.
09. VGA graphics indicator light, to detect whether the graphics card module is normal.
10. PCH south bridge indicator light, to detect whether the south bridge module is normal.
11. DP decimal point, CLK signal display.
12. DP decimal point, FRAME frame signal display.
13. Banghoro gold cord or keychain.
Gemini drive module

Newly created BGA type driver module. Concealed parts design to prevent dropouts.
The TL631 PRO card does not see any resistance or capacitance, it looks beautiful and
generous, and it is more free to use.
Integrated patch digital tube

Self-developed binding digital tube,
brand LED core, bright and comfortable, thin and scientific sense.

The appearance difference between
TL611 PRO and TL631 PRO

The appearance of the fifth generation TL631 PRO has no layout resistors and capacitors
Test sample
