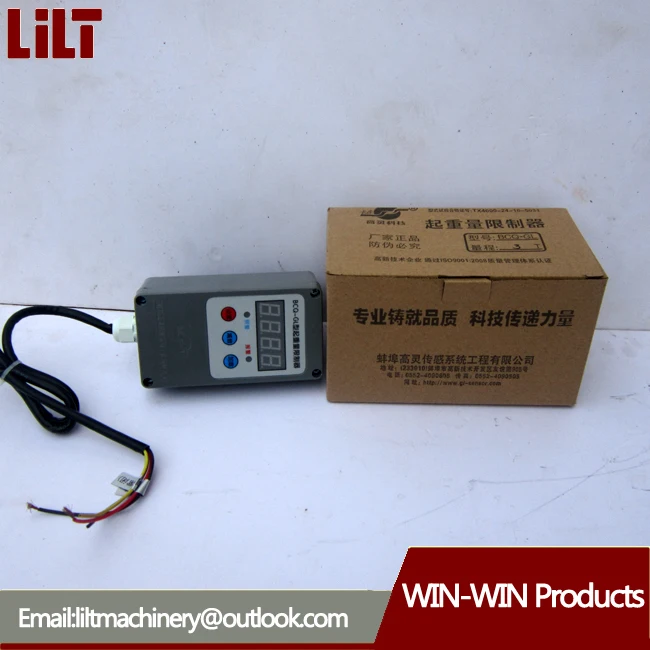

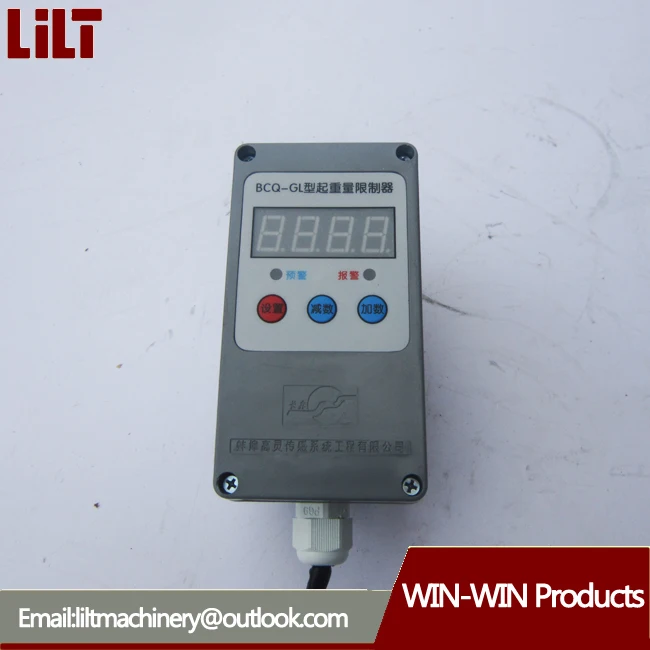

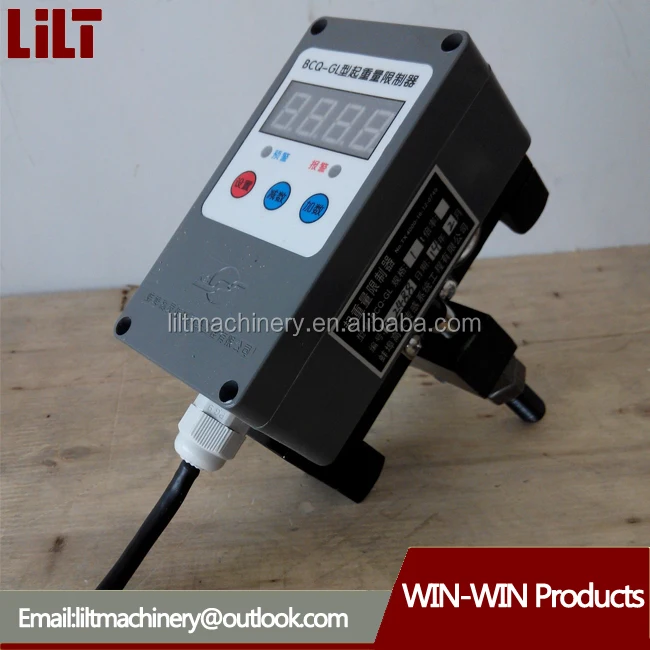

Digital Indicator Sensor Crane Weighing Load Cell Compression Hoist Lifting Weight Limiter:

The QCX-GL load lifting limited is used in safety protection device of the hoisting machinery . The design and production of the products are in strict accordance with the national standard GB12602-90 “ hoisting machinery protection safety technical specification ” .
Structure:

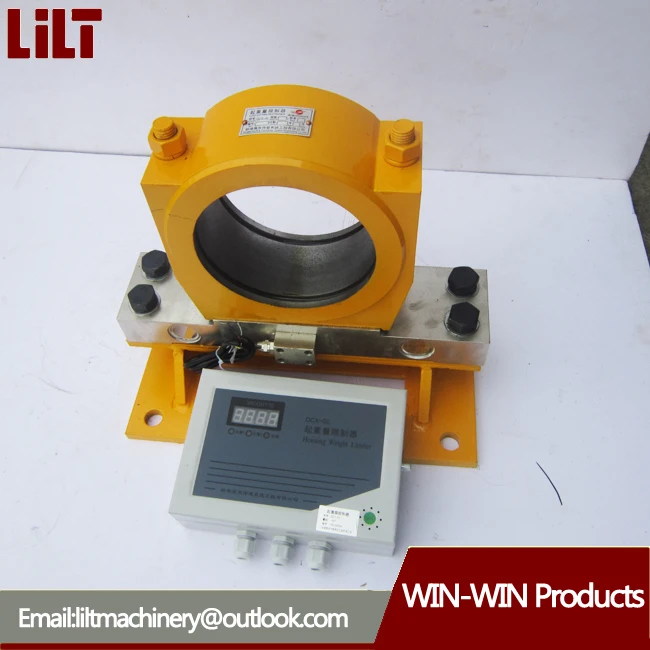

This product is composed of two parts by the bearing pressure sensor and control instrumentation , with digital display from the weight and automatic overload alarm and cut off the crane lifting loop power function . Applicable to the bridge carne and gantry crane equipment .
Advantages:
Compared with other similar products , this products have many characteristics , eg : high cost performance , economic , good reliability , easy install .

Digital Indicator Sensor Crane Weighing Load Cell Compression Hoist Lifting Weight Limiter data.

1.Use scope:3-75T bridge carne and gantry crane
2.Action error : ≤3%（F.S）
3. Integrated display error: ≤5%（F.S）
4.Setting of alarm point :
①Preliminary alarm point :90% of rated lifting weight
②Delayed alarm point : 105% of rated lifting weight.
5.Delayed alarm time:1-2 s
6.Overlaod capacity of sensor : 1.5times
7.Operating environment temperature: -20℃- +60℃
8.Power: 220V or 380V （±10%）50HZ ( If use other power , pls mark out )
9.Relay contact rating: 220V15A/380V10A
10.Protection rating of sensor: IP65
11.Protection rating of control cabinet: IP42

Digital Indicator Sensor Crane Weighing Load Cell Compression Hoist Lifting Weight Limiter.

The sensor output signal is amplified by the two integrated operational amplifier, the amplified signal is fed to a four comparator, wherein three separate comparator comparison with different reference voltages, respectively, its baseline were set at 90% of the nominal value, 105%, comparator action of the pre-alarm buzzer intermittent sound, light yellow, but to control the relay does not work, it does not limit the crane lifting.

When the load reaches 105% of the set point comparator action, to avoid starting shock load caused instant false overload, set a delay circuit, delay of 1-2 seconds, it is determined if the overload persists, really overloading, immediately cut off the lifting motor power, the red indicator light. Execution control relay to DC relay, the relay does not operate when normal lifting.

The device control relay contacts in series in the the crane hoisting control loop, overload control relay action, lifting loop cut, cranes stop lifting job, but the job does not affect the other direction, the circuit two The group DC power supply: ± 6V for sensor and secondary instrument, ± 8V for weight digital display.

Digital Indicator Sensor Crane Weighing Load Cell Compression Hoist Lifting Weight Limiter.

1.User when ordering please click models, specifications, code unified form of expression, and indicate the length of the cable, the Secretary will be charged for the length.
2. Lifting, the upper and lower positions weighing numerical slight difference is caused due to the length of rope on the drum is inconsistent, but integrated error required is less than 50% FS.
3.The device is limited from the overload protection, measurement scales generally do not make use of.
4. The device fall safety protection device, but not equipped with this device two ignore safety procedures

60693943587

Читать Инструкция по эксплуатации Hoist Fitness Weight Dip — Chin Assist CD2700 онлайн мануал pdf (страниц 43)

Если у вас отсутствует техническая возможность для скачивания Инструкция по эксплуатации для Hoist Fitness Weight Dip — Chin Assist CD2700
вы можете прочесть документ прямо на нашем сайте или
Скачать Hoist Fitness Weight Dip — Chin Assist CD2700 Инструкция по эксплуатации

Инструкции для прочих Hoist Fitness

Источник

Model CSLL-2 Crane & Hoist Load Limiter

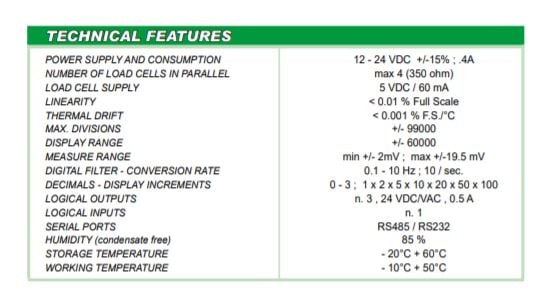

The CSLL-2 load cell based crane & hoist load limiter is designed for bridge / gantry cranes that have dual hoists either with the same capacity, or with a main hook and auxilary hoist. Each hook is provided with two setpoints. One can be set to trigger a relay to shut down the lifting operation and the other can be used to detect slack condition. The third relay can be set to the bridge’s capacity. For example, in an application that has a 50 ton main hook and a 5 ton auxilary hook, and the bridge is rated for 50 ton total, the third relay can be set to 50 tons. The CSLL-2 also monitors the load cell connections: If there is a break in the load cell connections or cable, all of the relay outputs will de-energize for that hoist.

Features

Din-rail mount
Easy setup
3 Relay outputs and 1 input
Adjustable filtering
12 to 24VDC operational
Toll-Free technical support

Reviews

There are no reviews yet for this product. Write a Review

Share this page

PRICING
ADDITIONAL INFORMATION
REVIEWS

Product Pricing

Part No.	Description	Price	Qty.
CSLL-2 (A+B)	2-Channel Crane / Hoist Overload Limiter.	$835.00
CSLL-1	Single Channel Crane / Hoist Overload Limiter	$417.50

Additional Options
Part No.	Description	Price	Qty.
PSC-24-015	12VDC, 1.25A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount (Will Power 2 Units)	$95.00
RD-100	Used to Display Individual Hoist Weight, 1	$395.00
SBL-2	Used to Display Individual Hoist Weight, 2	$790.00
SBL-4	Used to Display Individual Hoist Weight, 4	$1,450.00
SBL-6	Used to Display Individual Hoist Weight, 6	$1,785.00
SBL-9	Used to Display Individual Hoist Weight, 9	$2,710.00
LED5100A+B	Used to Display the Sum, 5 Digit 4	$1,520.00

The CSLL-2 consists of two din-rail mounted instruments, one for each load cell (hoist). Each device has an RS-232 digital output that can be connected to any of our remote displays. The sum of the two hoists can also be displayed on our LED5100A+B scoreboard. A remote input is available to switch the crane scale system from Gross to Net mode (However, relay outputs continue to use the Gross weight).

A single-instrument system model CSLL-1 is also available for cranes with only one hook.

Any of our load cells can be used with this system. Many applications use our DLWS clamp-on load cell or a load pin that is positioned on the «dead» end of the cable; or if the load cell is below the hook one of our tension link load cells can be used.

Brochures

CSLL-2 (A+B) Brochure
CSLL-2 (A+B) User Manual

Options


SBL Series 2″-9″ Scoreboards to Display Individual Hoist Weights	LED5100(A+B) 4″ Scoreboard to Display the Sum of Two Hoists
