AHD MOBILE DVR User Manual MR9504

~ 1 ~

AHD MOBILE DVR User Manual

(MR9504)

AHD MOBILE DVR User Manual MR9504

~ I ~

Catalogue Chapter 1 Overview …………………………………………………………………………………………… 1

Chapter 2 Quick setup ………………………………………………………………………………………. 1

1．Device Installation ……………………………………………………………………………………. 1

2．User Login ……………………………………………………………………………………………….. 1

3．Set up the System time …………………………………………………………………………….. 2

4．Set up cameras ………………………………………………………………………………………… 3

5．Wizard ……………………………………………………………………………………………………… 3

5.1 Vehicle Information setup …………………………………………………………………… 3

5.2 DiskManagement ………………………………………………………………………………… 4

5.3 WIFI Setup ………………………………………………………………………………………….. 4

5.4 Server setup ……………………………………………………………………………………….. 5

5.5 NetState ……………………………………………………………………………………………… 5

Chapter 3 System menu ……………………………………………………………………………………. 6

1．Video Playback …………………………………………………………………………………………. 6

1.1 Video playback …………………………………………………………………………………… 7

1.2 Video backup ……………………………………………………………………………………… 7

2. Basic Setup ……………………………………………………………………………………………….. 7

2.1 Date time setup…………………………………………………………………………………… 8

2.2 Vehicle information …………………………………………………………………………….. 8

2.3 Preview setup …………………………………………………………………………………….. 8

2.4 On/Off Setting …………………………………………………………………………………….. 9

2.5 System information …………………………………………………………………………….. 9

3. Network setup ………………………………………………………………………………………….. 10

3.1 Server setup ……………………………………………………………………………………… 10

3.2 WIFI Setup ………………………………………………………………………………………… 11

3.3 Network State……………………………………………………………………………………. 12

4．Recording Setup …………………………………………………………………………………….. 12

4.1 Mode setup ………………………………………………………………………………………. 13

4.2 MainStream ………………………………………………………………………………………. 13

4.3 SubStream………………………………………………………………………………………… 14

4.4 Recording OSD …………………………………………………………………………………. 15

4.5 Image setup ……………………………………………………………………………………… 15

4.6 Storage setup …………………………………………………………………………………… 15

5．Advanced setup ……………………………………………………………………………………… 16

5.1 UserManagement ……………………………………………………………………………… 16

5.2 Restore …………………………………………………………………………………………….. 17

5.3 Logout ……………………………………………………………………………………………… 17

5.4 UART setting …………………………………………………………………………………….. 18

5.4.1 UART-TTS …………………………………………………………………………………… 18

5.4.2 UART-Serial Net ………………………………………………………………………….. 18

5.5 Rear Camera setup …………………………………………………………………………… 19

AHD MOBILE DVR User Manual MR9504

~ II ~

6．Device maintenance ……………………………………………………………………………….. 19

6.1 Log inquiry ……………………………………………………………………………………….. 20

6.2 Disk Management ……………………………………………………………………………… 20

6.3 Import/Export ……………………………………………………………………………………. 21

6.4 System upgrading …………………………………………………………………………….. 21

7．Alarm setup ……………………………………………………………………………………………. 22

7.1 Input Alarm ……………………………………………………………………………………….. 23

7.2 Video Loss ……………………………………………………………………………………….. 24

7.3 FatigueDrivingAlarm …………………………………………………………………………. 24

7.4 OverSpeedAlarm ………………………………………………………………………………. 25

7.5 DiskError ………………………………………………………………………………………….. 25

Chapter 4 Installation Warnings …………………………………………………………………….. 25

AHD MOBILE DVR User Manual MR9504

~ 1 ~

Chapter 1 Overview

MR9504 is a DVR designed for Analog HD vehicle monitoring. With built-in high

performance image processor and advanced H.264 video compression technology, it

provides AHD video recording, storage and playback solution. It has built-in WiFi module

(optional) for remote monitoring, analysis and management. It comes with smart power

management system which can recognize the power type automatically. When detected

the battery’s voltage is lower than the gaven value, the device will shutdown automatically

and keep ultralow standby consumption.

Chapter 2 Quick setup

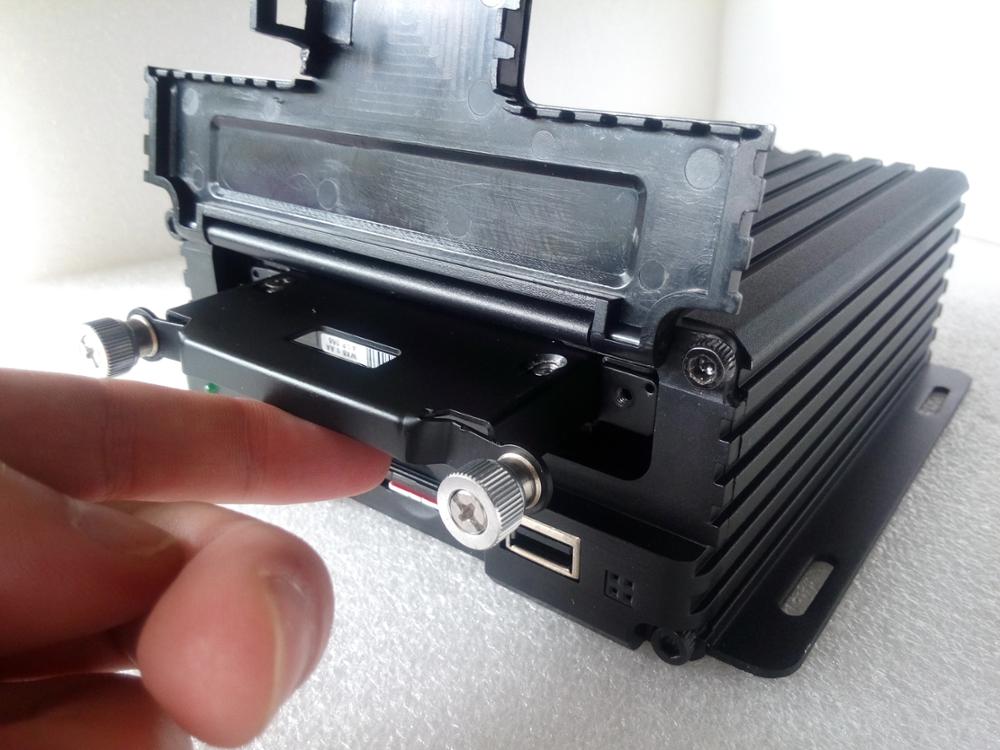

1．Device Installation

Please refer to “AHD MOBILE DVR Hardware User Manual (MR9504)” for the SD card

installation and cables connection.

2．User Login

Right click the mouse, you will call out the login interface, please input your UserName,

Password, and select your language, click “OK” to login the menu. (The default UserName

is admin, without Password), see as following:

Figure 1. User login Interface

Right click the mouse, select “Menu” to start setup in the menu, see as following:

AHD MOBILE DVR User Manual MR9504

~ 2 ~

Figure 2. System menu

“Menu” is the primary menu of the system setup and control, see as following:

Figure 3. Primary menu

3．Set up the System time

Path: Basic->DateTime, see as following:

Figure 4. System date and time

TimeSYNC: Date and Time can be synchronized with GPS/BD

AHD MOBILE DVR User Manual MR9504

~ 3 ~

4．Set up cameras

Path: Menu->Record->Mode. Please set up your cameras’ SignalType, Valid/Invalid. The

DVR works with both AHD and general cameras. If you use AHD cameras, please select

the first Type, if you use general cameras, please select the third Type, if you use both of

general and AHD cameras, please select the second Type. See as following:

Figure 5. SignalType setup

PS: If your cameras don’t display image on the monitor, please check this setup.

5．Wizard

Path: Menu->Wizard. This Wizard will help you to quick set up the device connect with the

server. If your device is without WiFi function, you can ignore the step 1/4 and begin with

step 2/4.

5.1 Vehicle Information setup

Figure 6. Wizard-Vehicle Information Setup

AHD MOBILE DVR User Manual MR9504

~ 4 ~

The DVR is using “Device ID” to connect with the server, so please input the correct

DeviceID which was registered on the server for your device. The user can modify the

VehicleName and PlateNumber according to their requirement. The PlateNumber is the

vehicle’s plate number, and it will be displayed in the video.

5.2 DiskManagement

SD card need to be formated in the device when using it for the first time. If the SD card

was not detected by the device, please check the SD card lock and make sure it is well

locked.

Figure 7. Wizard-DiskManagement

5.3 WIFI Setup

The device can save maximum 6 WiFi ESSID (Access Points). It will search, match,

connect, and switch automatically. Click the corresponding blank to start WiFi setup. Then

click “Search” you will see the available WiFi around your area, select the one your want

to connect and input the password and save it.

Figure 8. WiFi setup list

AHD MOBILE DVR User Manual MR9504

~ 5 ~

5.4 Server setup

IP (or Domain) is your server’s IP (or Domain), the Port should be same with your server

setup.

Figure 9. Wizard-Server Setup

5.5 NetState

Path: Menu->Network->NetState. You can check the state of the network connection of

your device here.

Figure 10. NetState

Server: Online, it means the device connected with the server.

AHD MOBILE DVR User Manual MR9504

~ 6 ~

Chapter 3 System menu

Figure 11. System menu

1．Video Playback

The device supports one channel video playback, Select “Playback” in the System menu,

then you will get the video searching interface, please search the video according to your

requirement.

Figure 12. Video Search

PS: The system will only show the latest 4,000 pcs of video files

AHD MOBILE DVR User Manual MR9504

~ 7 ~

Figure 13. Video Search Result

1.1 Video playback

Double click the video file in the video Search result Interface to playback the video.

1.2 Video backup

Select the video files in the video search results interface and use your U disk or SD

card to backup the videos. (The device supports USB time-delay detecting, you can

insert the USB disk after you setted up and clicked the “Backup” button.)

2. Basic Setup

The basic setup includes the very basic setup items such as DateTime, Vehicle

Information, and Preview Etc., See as following:

Figure 14. Basic setup

AHD MOBILE DVR User Manual MR9504

~ 8 ~

2.1 Date time setup

Figure 15. Date time setup

Time synchronization: The system’s date and time can be synchronized with GPS/BD.

2.2 Vehicle information

Figure 16. Vehicle information

Device ID: It is the ID used to connect your device with the server. It should be the same

ID which you registered your device on the server.

2.3 Preview setup

Here you can setup the information which you want to overlay on the Preview image

(please note this is not overlayed on the recording image)

AHD MOBILE DVR User Manual MR9504

~ 9 ~

Figure 17. Preview setup

2.4 On/Off Setting

Figure 18. ON/OFFsetting setup

PS: The device’s power cable should be connected as per the Hardware User Manual,

otherwise, the On/Off setting will not work.

2.5 System information

System information includes: Device Model, Serial Number, Hardware & Firmware

version etc.

AHD MOBILE DVR User Manual MR9504

~ 10 ~

Figure 19. System information

3. Network setup

Network setup: This interface is used to set up the parameters which are requested to

connect the device with the server.

Figure 20. Network setup

3.1 Server setup

IP/Domain is the ip or domain of your device’s server.

Figure 21. Server setup

AHD MOBILE DVR User Manual MR9504

~ 11 ~

3.2 WIFI Setup

The device can save maximum 6 WiFi ESSID (Access Points). It will search, match,

connect, and switch automatically. Click the corresponding blank to start WiFi setup. Then

click “Search” you will see the available WiFi around your area, select the one your want

to connect and input the password and save it.

Figure 22. WIFI Setting list

You can input the ESSID of the WiFi AP but you can also click “Search” to search the

available WiFi ESSIDs around your area.

Figure 23. WIFI Setup

AHD MOBILE DVR User Manual MR9504

~ 12 ~

Figure 24. WIFI Search result

3.3 Network State

You can check the state of the network connection of your device here.

Figure 25. NetState

4．Recording Setup

Recording setup includes Mode, Main Stream, Sub Stream, Recording OSD, Image,

storage.

AHD MOBILE DVR User Manual MR9504

~ 13 ~

Figure 26. Recording setup

4.1 Mode setup

Figure 27. Mode setup

Please set up your cameras’ SignalType, Valid/Invalid. The DVR works with both AHD

and general cameras. If you use AHD cameras, please select the first Type, if you use

general cameras, please select the third Type, if you use both of general and AHD

cameras, please select the second Type.

4.2 MainStream

Main Stream is stored in local disk. This interface shows the current Main Stream

AHD MOBILE DVR User Manual MR9504

~ 14 ~

setting and the corresponding storage size, you can click any line to set up the

corresponding parameters.

Figure 28. Main stream list

Figure 29. MainStream AV setup

PS: If BitRate is bigger, the corresponding channel’s storage size will be bigger.

4.3 SubStream

SubStream is used for network transmission and backup in local disk.

Figure 30. SubStream setup

AHD MOBILE DVR User Manual MR9504

~ 15 ~

Figure 31. SubStream AV setup

4.4 Recording OSD

Recording OSD is used to overlay the information to video recording.

Figure 32. Recording OSD

4.5 Image setup

Image setup is used to adjust to camera’s image effect, please set up it carefully.

Figure 33. Image setup

4.6 Storage setup

The device supports dual storage. Both of the MainStream and SubStream can be

stored in local disk, but each disk can only store one type of stream.

AHD MOBILE DVR User Manual MR9504

~ 16 ~

Figure 34. Storage setup

5．Advanced setup

Figure 35. Advanced setup

5.1 UserManagement

You can add, modify, delete users, and modify the login username and privileges

AHD MOBILE DVR User Manual MR9504

~ 17 ~

Figure 36. User management

5.2 Restore

Restore the system setup parameters. System will reboot when restore finished. See

as following:

Figure 37. Restore

There are 3 restore modes:

Normal Info: Restore all info except Vehicle info.

Vehicle Info: Restore vehicle info only.

All: Restore all info.

5.3 Logout

Logout means the current user will logout the system automatically if the user had no

operation in the gaven time range.

AHD MOBILE DVR User Manual MR9504

~ 18 ~

Figure 38. Logout

5.4 UART setting

The device has 1 RS232 Interface.

Figure 39. UART setting list

5.4.1 UART-TTS

Select UART 0 to get into UART setting interface.

Figure 40. UART setting interface

Select “TTS” in the drop-down box of “Function”, config the parameters as per the

picture above.

5.4.2 UART-Serial Net

Select UART 0 to get into UART setting interface.

Figure 41. UART setting interface

AHD MOBILE DVR User Manual MR9504

~ 19 ~

Select “SerialNet”（PassThrough）in the drop-down box of “Function”. Config the

parameters as per the picture above.

5.5 Rear Camera setup

Any channel can be used as rear camera, click “Zone” to set up the assistance lines.

Figure 42. Rear Camera setup

The assistance lines are adjustable (dragging the blue points)

Figure 43. Assistance lines setup

6．Device maintenance

Device maintenance includes the operation of basic maintenance, such as log inquiry,

Disk management, Import/Export the setup and config, system upgrading.

AHD MOBILE DVR User Manual MR9504

~ 20 ~

Figure 44. Device maintenance

6.1 Log inquiry

Inquiry the system’s running log according to the required Log Type and Time Range.

Figure 45. Log inquiry

6.2 Disk Management

SD card need to be formatted in the device when you use it for the first time.

AHD MOBILE DVR User Manual MR9504

~ 21 ~

Figure 46. Disk Management

6.3 Import/Export

Import/Export is used to import/export the setup and config information for setup in

batch.

Figure 47. Import/Export

After setted up one device, export the setup parameters with your U disk, then insert the U

disk into other device’s USB port and re-power on the device, it will get the setup

parameters utomatically. (If you don’t want to re-power on the device, you can import the

setup paramaters in menu, see as above)

6.4 System upgrading

Format your U disk as FAT32 type and copy the upgrading file to the root directory of the

U disk. Then re-power on the device, it will upgrade automatically. If you don’t want to

re-power on the device, you can upgrade it in the menu “Import/Export”. Select the

upgrading type, click OK, then insert the U disk. The system will detect the U disk and the

file and then upgrade automatically.

AHD MOBILE DVR User Manual MR9504

~ 22 ~

Figure 48. System upgrading

Figure 49. Upgrading progress

PS: You can insert the U disk which with the upgrading file, and then re-power on the

device, it will upgrade automatically. You can also upgrade the device remotely from PC

CMS software if your device has WiFi function and connected with the server by WiFi.

7．Alarm setup

Alarm setup interface includes the setting related to all alarm types, such as I/O alarm,

Video Loss, Fatigue Driving, Over Speed, Disk error.

Figure 50. Alarm setup

AHD MOBILE DVR User Manual MR9504

~ 23 ~

7.1 Input Alarm

The device has 4 alarm inputs, 2 are Positive Trigger, 2 are Negative trigger.

Figure 51. Input Alarm list

Figure 52. Input Alarm setup

There are three input modes: high level, low level and open. For positive trigger, the

normal trigger level is high, but if the reversed logic is enabled, the trigger level is changed

to low level and open. It is same for negative trigger.

表1. Alarm Input Trigger status list

Alarm Trigger Positive trigger Negative trigger

Reversed

Logic No High level Low level

Reversed

Logic Yes Low level/Open High level/Open

AHD MOBILE DVR User Manual MR9504

~ 24 ~

7.2 Video Loss

Video Loss alarm will be triggered if there is no camera or wrong type camera were

connected with a valid channel.

Figure 53. Video Loss alarm setup

7.3 FatigueDrivingAlarm

The Fatigue Driving time is calculated since the device was started.

Figure 54. Fatigue Driving alarm setup

AHD MOBILE DVR User Manual MR9504

~ 25 ~

7.4 OverSpeedAlarm

Figure 55. OverSpeedAlarm setup

7.5 DiskError

Figure 56. DiskError setup

Chapter 4 Installation Warnings

For safely using and long service life, please respect these Warnings when insalling

and using the device:

1. When you received the product, please open the box and check the device and

accessories. If there is anything damaged or missing, please contact your seller.

2. When installing and operating the device, please respect the standard of all

electronics and the connecting requests of the vehicle and other devices

3. Please double check the input power voltage, it should be 10-36V DC, to avoid the

damage caused by wrong voltage.

AHD MOBILE DVR User Manual MR9504

~ 26 ~

4. The device should work in the permitted temperature and humidity.

5. There should be enough space and fire resistant pipes on the external cables of the

device to avoid electric leakage caused by abrasion and aging.

6. The installation and construction should be compliant with the standard of the

government.
